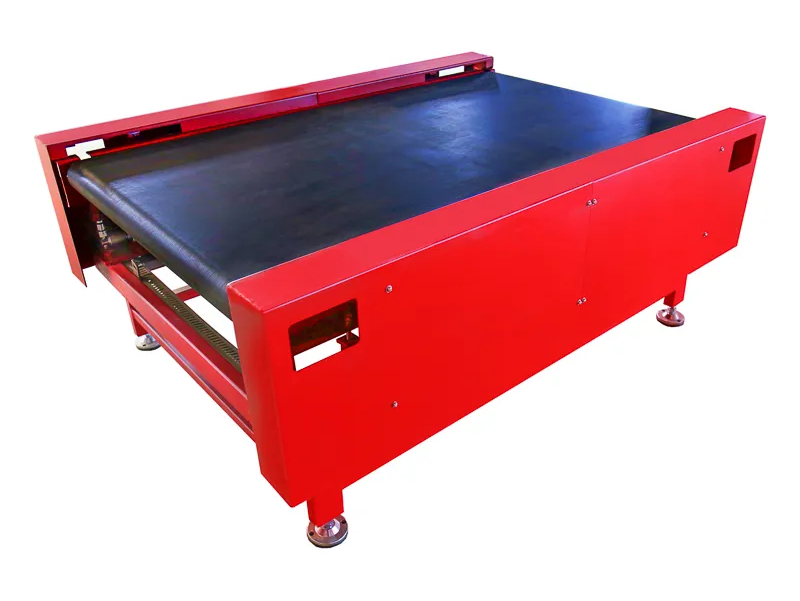

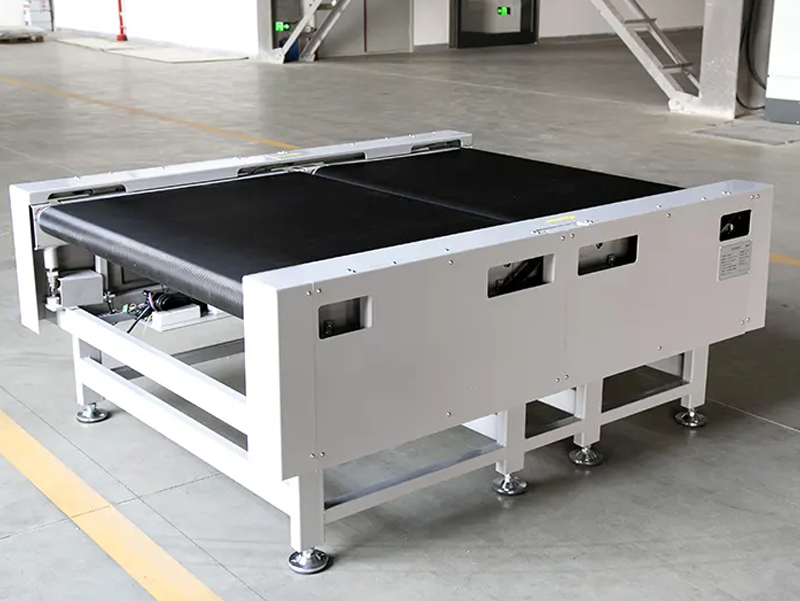

Dynamic Scale
The dynamic scale belongs to the express intelligent sorting equipment, which is composed of a rack, a weighing platform, a belt, and a drive unit. According to the structure of the drive unit, it can be divided into single dynamic scale and double dynamic scale. For Limin dynamic weighing, four sensors transmit signals to the junction box. After the junction box processes the signal, it transmits the signal to the controller with a 6-core shielded wire. Side LED display, and use the RS232 data cable to transmit to the computer. The double scale is similar to the single scale, which is transmitted to the controller by 8 sensors and two junction boxes.
key word：
Dynamic Scale
Category：
Product Description
Features
Weighing is done in dynamic transport
Collect data automatically with accuracy.Data are collected in one pass without operator's intervention, ensuring its accuracy.
Precise Sorting
Superior Performance
High Efficiency and Stability
| Single Dynamic Scale | |
|---|---|
| Dimension | LxWxH:1820x1320x780(mm) |
| Installation Height | 700mm |
| Cargo Size | Min:LxWxH 150*150*10（mm） Max:LxWxH 1500*900*700（mm） |
| Cargo Weight | 100g~60kg |
| Running Speed | 90-150m/min（adjustable） |
| Running Noise | <75dBA (within1 meter) |
| Balance Wheel Action Time | Controlled by host system |
| Balance Wheel Response Time | <200ms |
| Sorting Capacity | 4000-5000pcs/h |
| Weighing Accuracy | <30g |

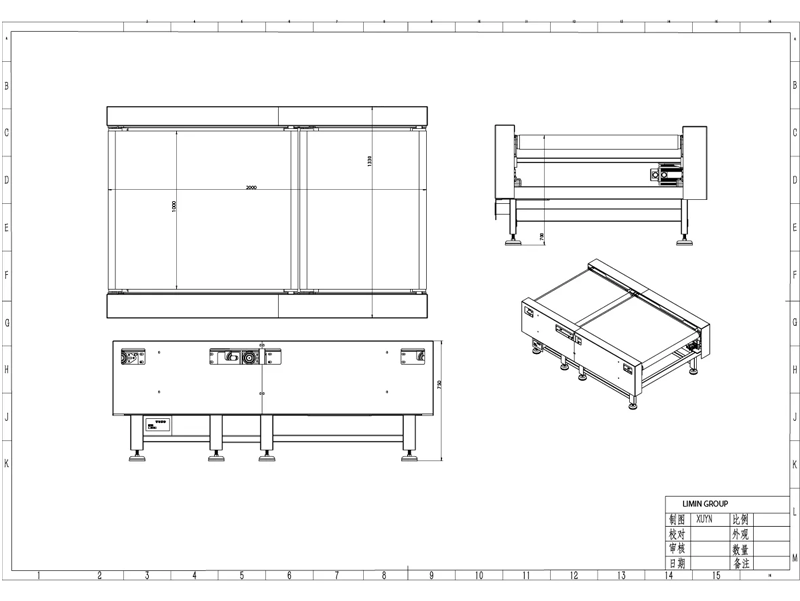

| Double Dynamic Scale | |
|---|---|
| Dimension | LxWxH:2030*1330*780（mm） |
| Installation Height | 700mm |
| Cargo Weight | 100g~60kg |
| Running Speed | 90-150m/min（adjustable） |
| Running Noise | <75dBA (within1 meter) |
| Weighing Accuracy | <30g |
| Cargo Size | Max:LxWxH 1500*900*700（mm） |
| Cargo Size | Max:LxWxH 150*150*10（mm） |
