Intelligent wireless energy-saving controller

Category：

Intelligent Wireless Communication Energy Saving Controller

Enquiry

Related Products

Product Description

Product Introduction

Intelligent wireless energy-saving controller series products use 2.4G wireless transmission, with strong anti-interference ability, wireless communication industrial occasions stable and reliable;

The product uses 9~ 12V power supply, for express distribution belt line occasions, do not need additional power supply, the use of inverter output power can work; Saving switching power supply and manual wiring; Module adopts dip switch for station number setting and frequency band setting, IOTW-EC02 has inverter intelligent energy-saving speed regulation function to achieve power saving, with the connection function to achieve flow rate control to smooth package operation; And sensitivity parameters can be freely configured, the module has LED display and alarm function; Support the one-key start-stop function of the inverter;

As a communication medium, like optical fiber, microwave and open wire, it has a certain range of application: It provides real- time and reliable data transmission of monitoring signals in the private network under certain special conditions, with low cost, easy installation and maintenance, strong diffraction ability, lively network structure, and far coverage. It is suitable for multi-point and dispersed location, complex geographical environment and other occasions, and can be connected with PLC and other data terminals.


IOTW01	IOTW-EC02

1.2 Function Features

• Software and hardware dual watchdog;

• The product is simple to use, simple configuration;

• Adopt the latest 2.4G wireless transmission technology;

• Simple and efficient power supply design, using the press line mode, support inverter output direct power supply;

• Power supply voltage 9 ~12V low power consumption design;

• All aluminum alloy shell, compact volume, easy installation, good heat dissipation;

• Perfect shield design, good electromagnetic compatibility, strong anti-interference ability;

• Dip switch design, station number and frequency band setting more convenient;

• Support one-key switch function;

• Support inverter intelligent energy saving and fixed frequency free switching ①;

• Support belt connection function, package running smoother ①;

• Support voltage, frequency, current, fault collection;

• With master station, slave station mode, a master station supports 250 slave stations, support 16 frequency bands;

• Support hot swappable design;

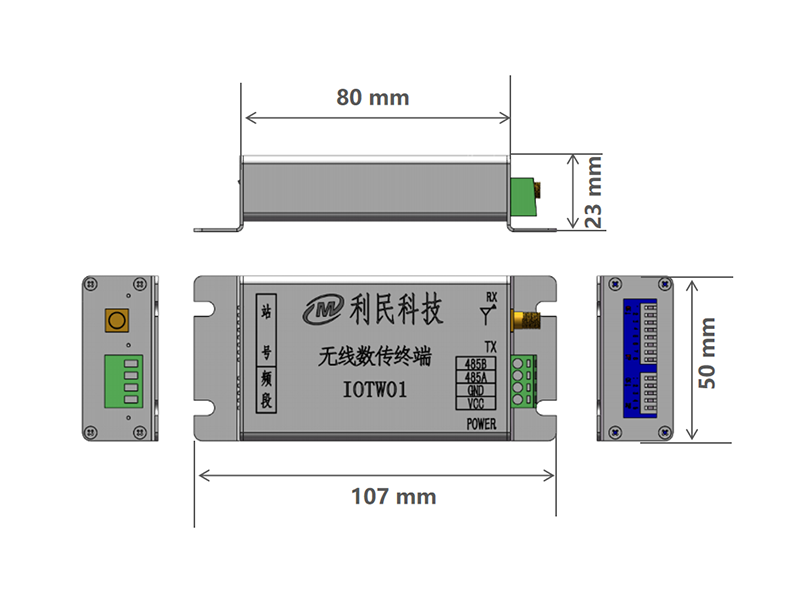

IOTW01Exterior dimensions

Wireless data terminal

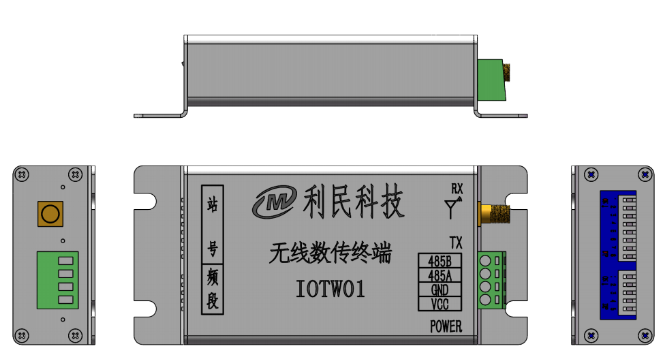

IOTW-EC02 Exterior dimensions

Intelligent wireless communication

energy-saving controller

Model Specifications

Model

Specification

Work

Frequency

Emission

Power

Reference

Distance

Gathering

Features

One Click

Start Stop

Energy Saving

Fixed Frequency

Wired

Features

IOTW01

2.4G

12dBm

800m

●

○

IOTW-EC02

2.4G

12dBm

800m

●

General Specifications

No.	Items	Specifications	Instructions
1	Product size	1075023 mm	See mounting dimensions for details
2	Product weight	65g	Weight tolerance 5g
3	Operating temperature	-40℃～+85℃	Meet industrial occasions
4	Antenna impedance	50Ω	Standard 50Ω impedance
5	Voltage range	DC 9~12V	+/-1V
6	Communicati on interface	RS485	Standard press wire type
7	Baud Rate	19200	Factory default 19200
8	Address code	1~255	Factory default 0
