CNC automatic cutting center

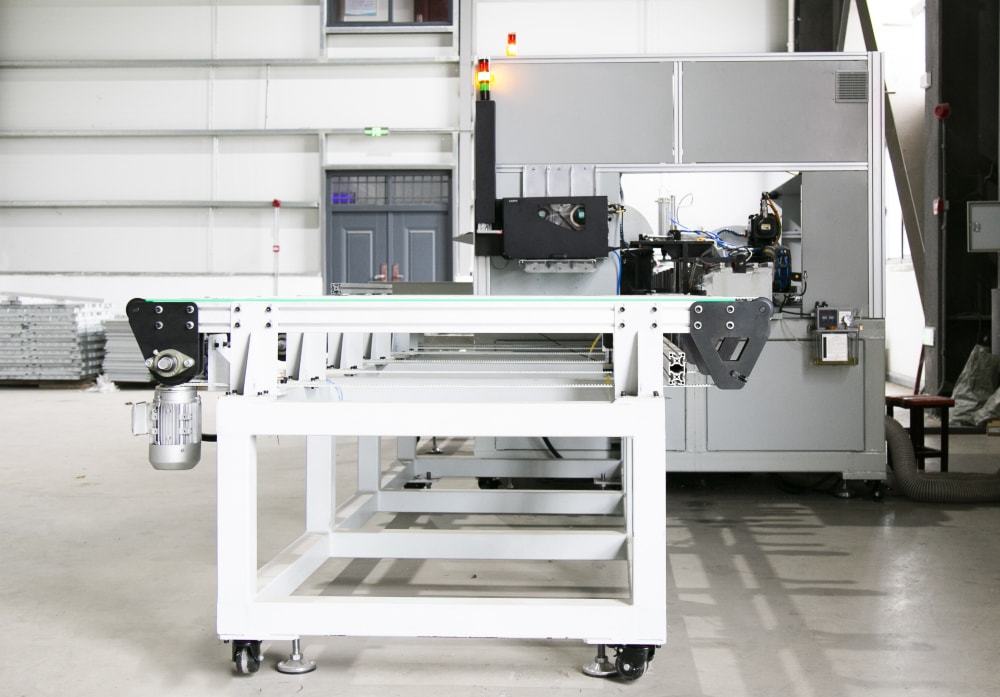

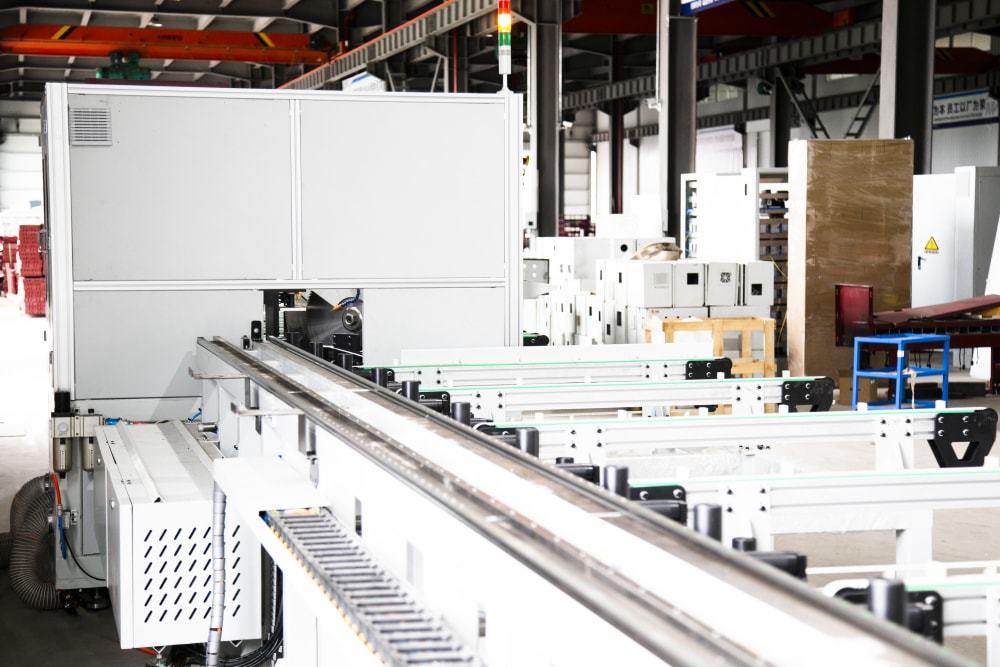

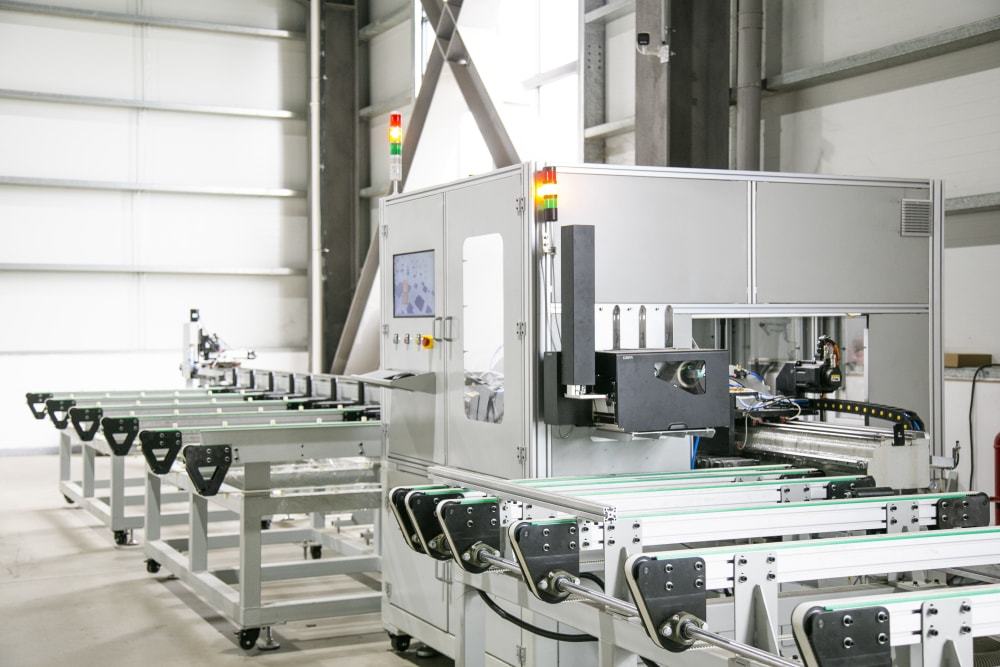

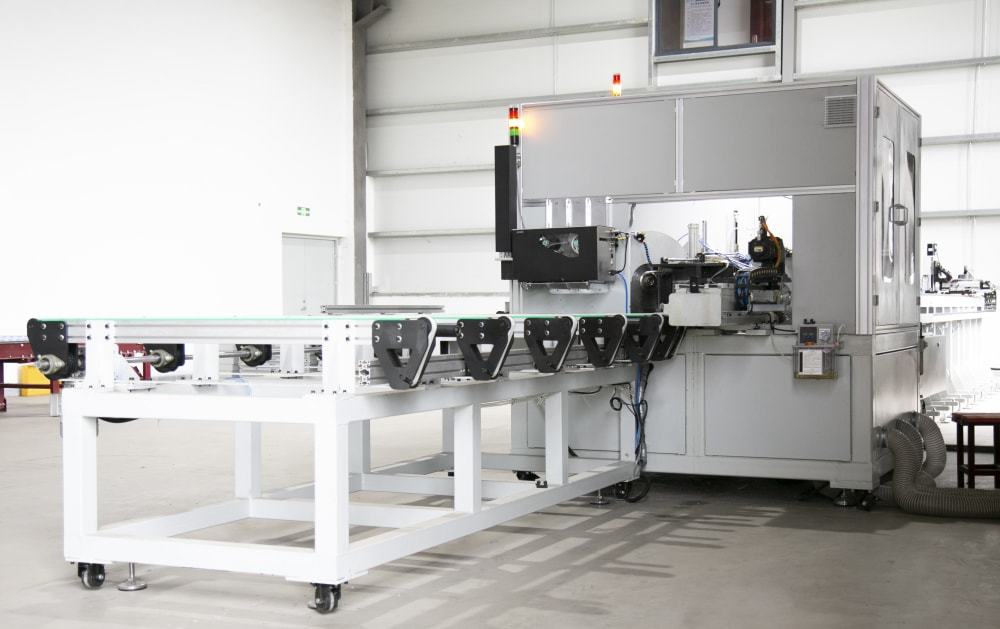

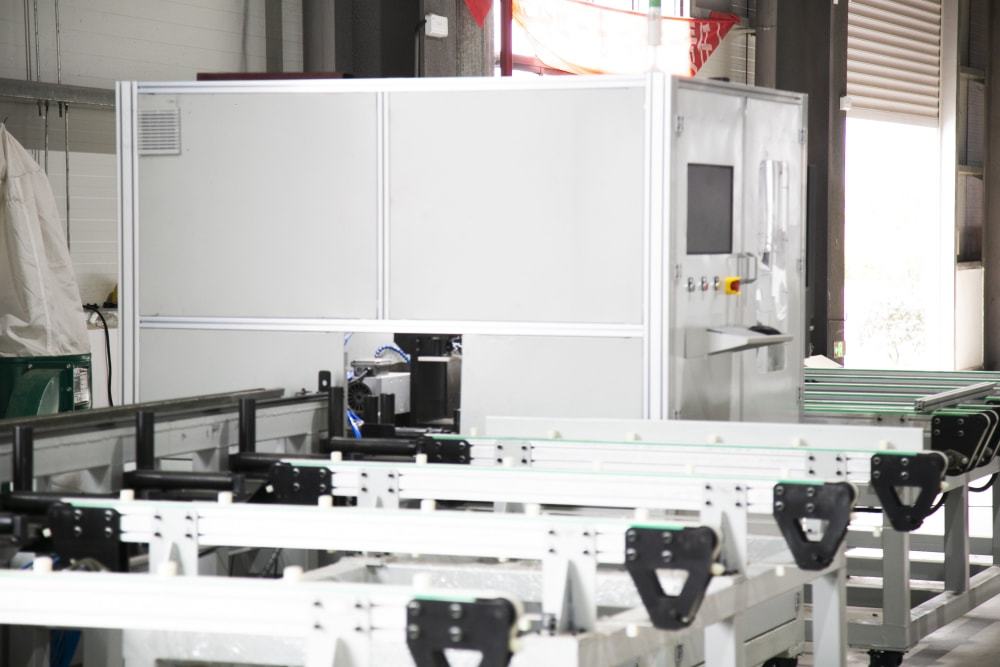

LMJG-73 CNC automatic cutting center is an automatic CNC processing equipment for sawing and blanking the profiles for door and window frames.

key word：

Category：

Enquiry

Related Products

Product Description

LMJG-73 CNC automatic cutting center is an automatic CNC processing equipment for sawing and blanking the profiles for door and window frames.

Feeding,cutting and discharging are completed automatically

Realize automatic intelligent production

1.1Equipment composition: feeding unit, cutting unit, discharging unit, electronic control unit, and software unit.

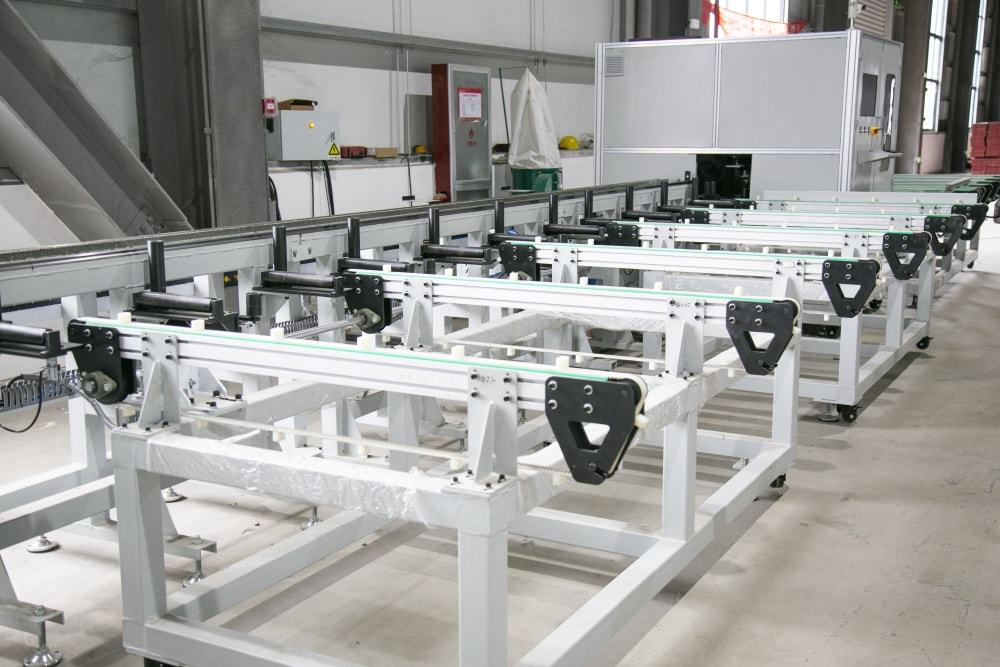

1.2 The feeding unit includes: storage device, bed, feeding device, etc.

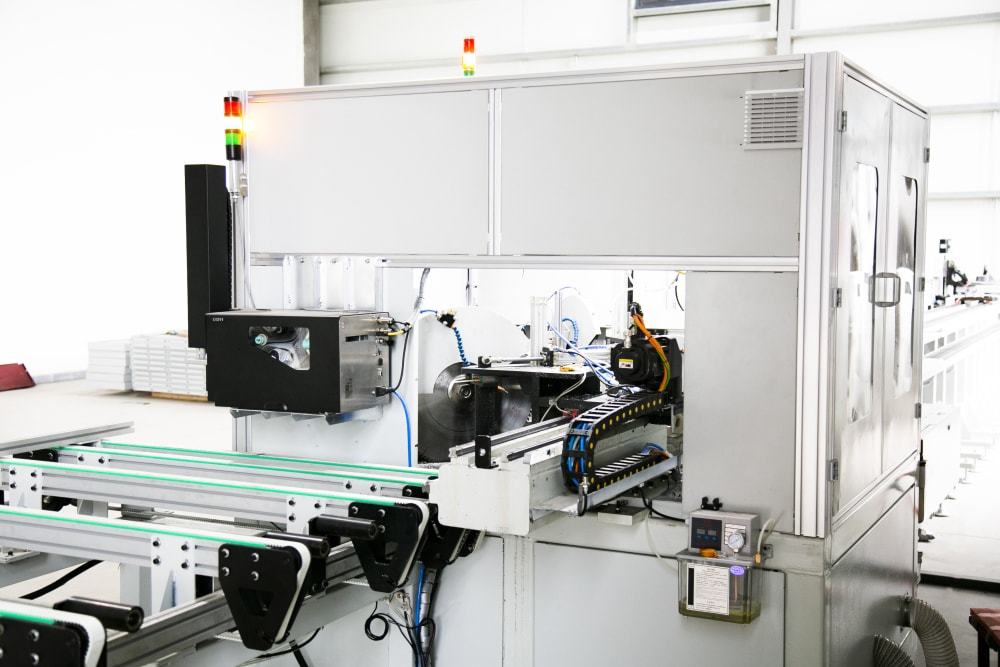

1.3 The cutting unit includes: (45° and 90°) cutting device, clamping device, feeding device, chip removal device, dust removal device, protection device, monitoring device, cooling device, etc.

1.4 The discharge unit includes: feeding device, unloading device, printing device, etc.

1.5 The electronic control unit includes: motion control link, servo control link, frequency conversion link, DC power supply, sensing element, industrial control host, CNC interface, alarm device, protection link, etc.

1.6 The software unit includes: host computer software, CAM software, cutting execution software, etc.

2. Main technical parameters of the equipment

NO.	Item	Parameter
1	Input voltage	380 V/50 Hz
2	Input power	7.85 Kw
3	working air pressure	0.6-0.8 MPa
4	Air consumption	120 L/min
5	Saw speed	2800 r/min
6	Cutting length	300-7300 mm
7	Maximum width/height of sawing	120 mm/140 mm
8	Manipulator speed	0-100 m/min
9	Cutting angle	45°、90°
10	Saw blade specification	500×30×4.4 Z=120
11	cutting accuracy	±0.15 mm/m
12	Cutting surface flatness	≤0.10 mm
13	Maximum number of profiles loaded at the same time	6 roots
14	Overall dimension	13800×2800×2060 mm
15	Total weight	4500 Kg
